ASSEMBLY INSTRUCTIONS PHOTOS AND VIDEOS
ARI COG FOR SRAM XX CASSETTE
Home
Sram XX: mounting istruction for your ARI cog on Sram XX cassette

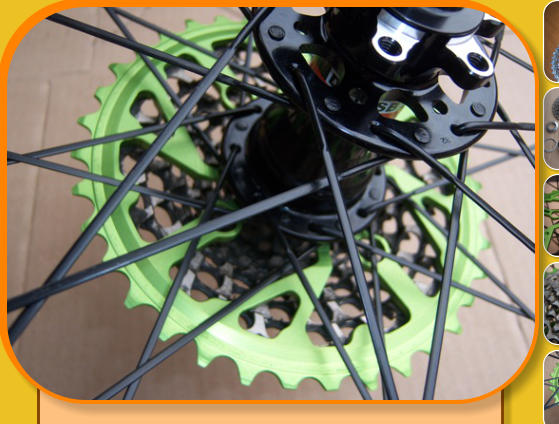

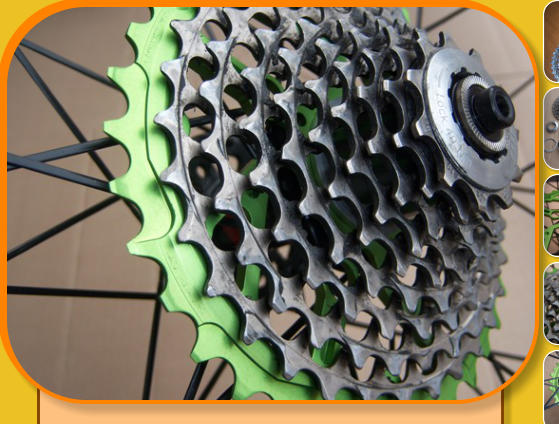

ARI 39t cog on SRAM XX cassette in action

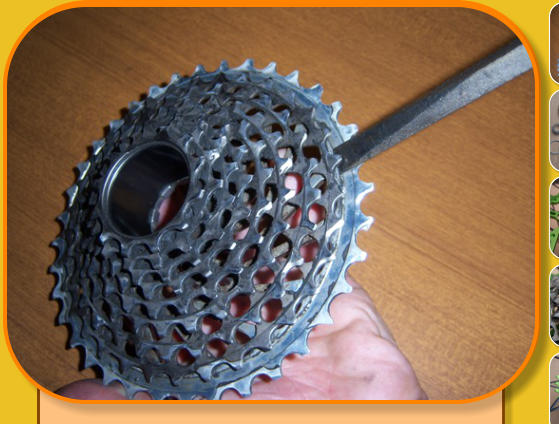

Phase 1 Disassembling of original cassetteStep 1

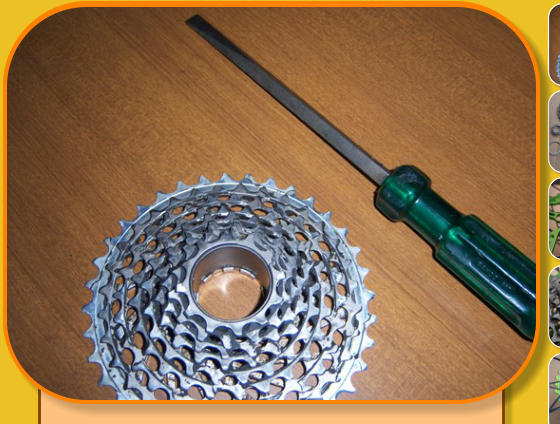

material needed to disassembly last cog of original XX cassettelarge flat-blade screwdriver
gently make lever between last and second last cog

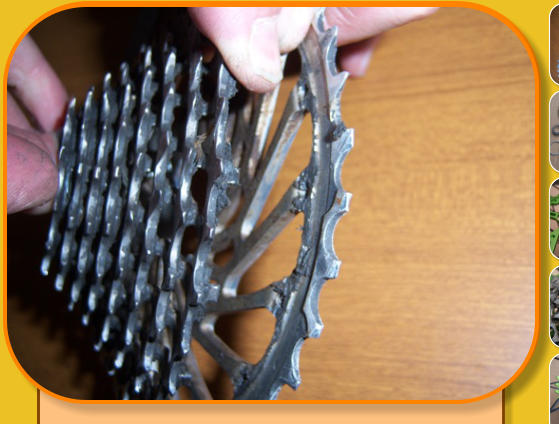

Phase 1 Disassembling of original cassetteStep 2
separate last cog

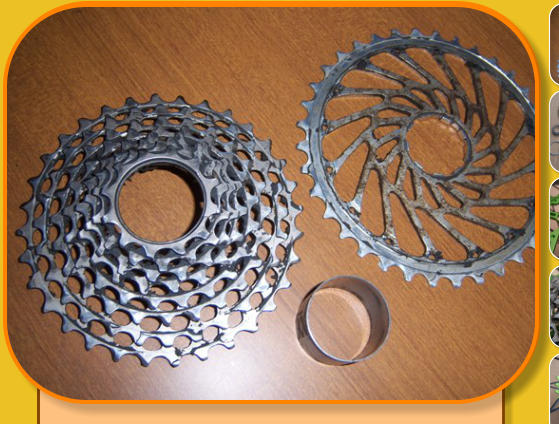

Phase 1 Disassembling of original cassetteStep 3
you have obtained 3 partsclean perfectly cassette and central spacer and discard the used cog
Phase 1 Disassembling of original cassetteStep 4

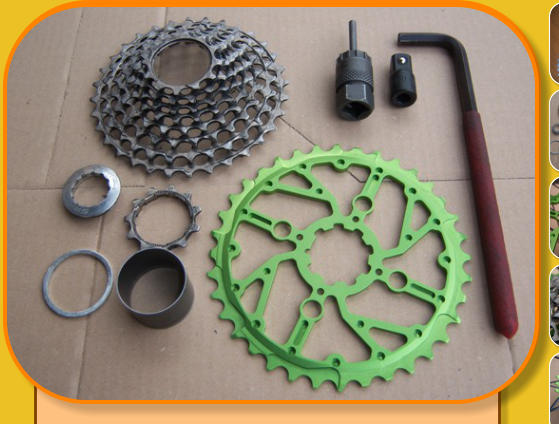

material needed to assembly Ari cog on original XX cassette

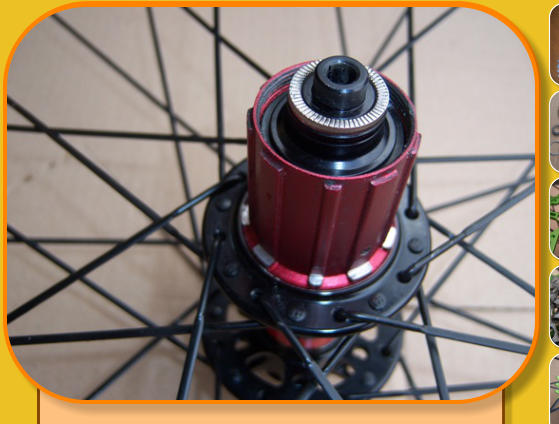

Phase 2. Ari cog assemblyStep 5
put your wheel in horizontal position
Phase 2. Ari cog assemblyPassaggio 6

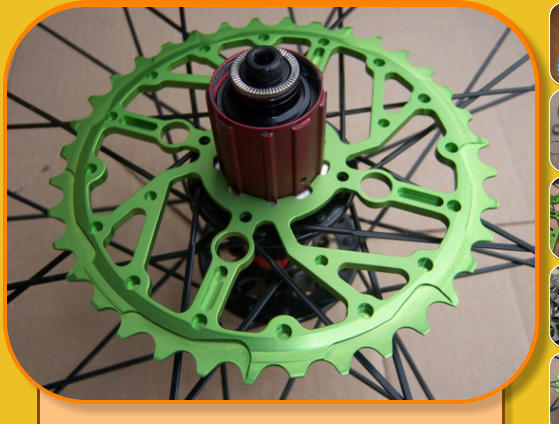

insert your new Ari cog in the hub with the holes for the pin drag facing upwards

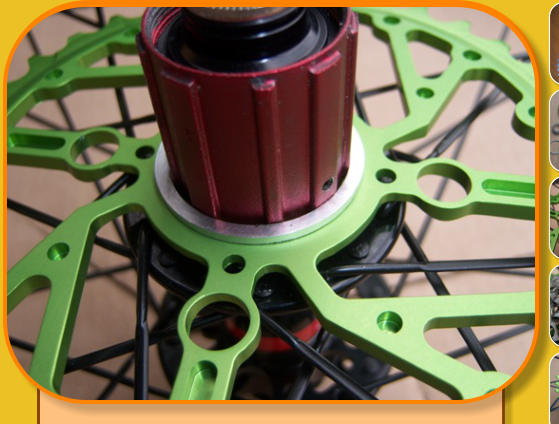

Phase 2. Ari cog assemblyStep 7
insert the aluminium spacer supplied by Ari with the cog

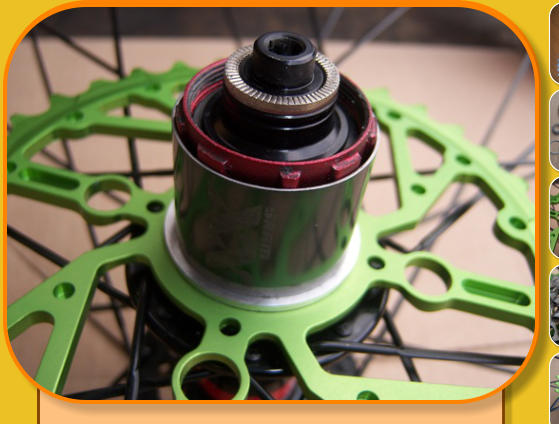

Phase 2. Ari cog assemblyStep 8
insert the original central spacer

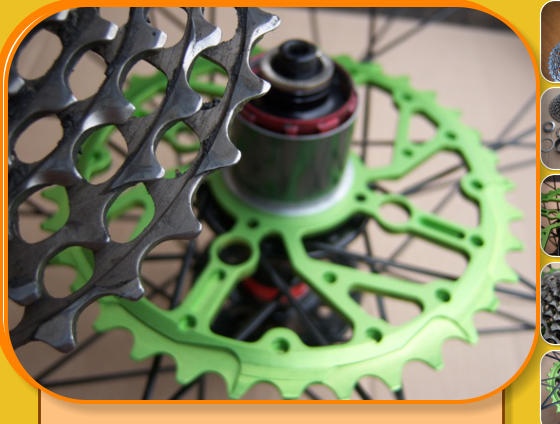

Phase 2. Ari cog assemblyStep 9
insert the cassette taking care the holes for the pin drag perfectly enter their seats

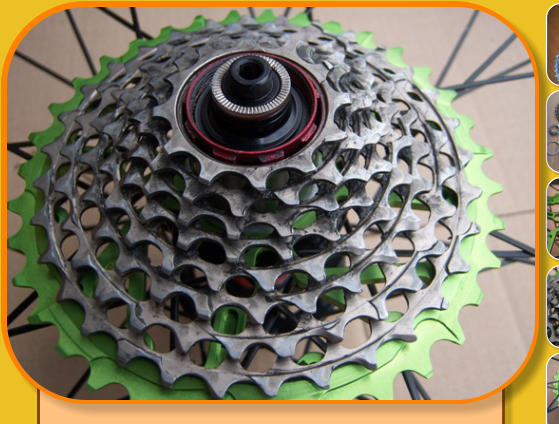

Phase 2. Ari cog assemblyStep 10

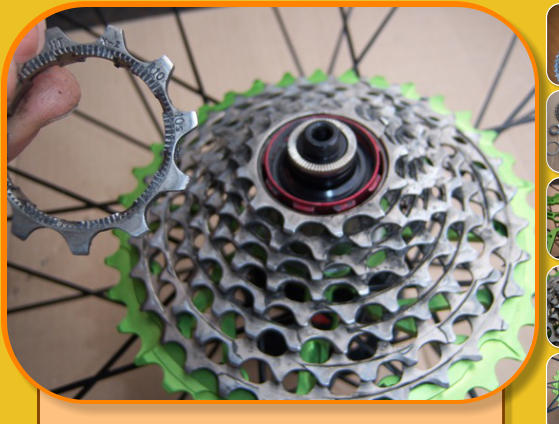

insert the 11tooth original cog
Phase 2. Ari cog assemblyStep 11
check wellphase of drag seats of 11tooth cog with hub tooth

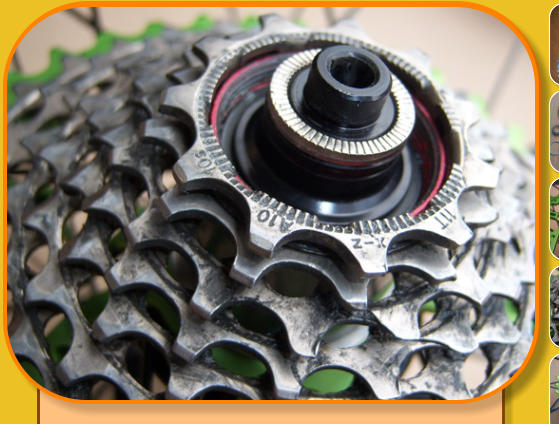

Phase 2. Ari cog assemblyStep 12
be sure 11tooth cog rests perfectly flat

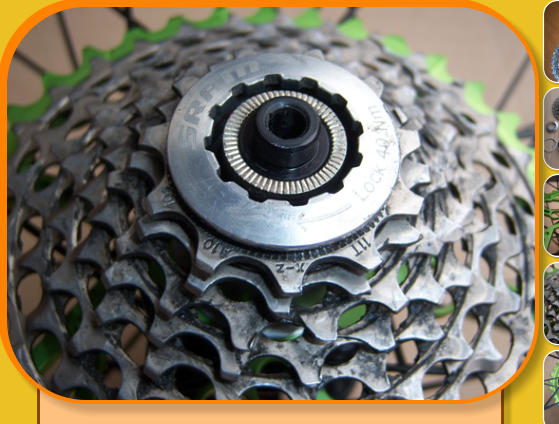

Phase 2. Ari cog assemblyStep 13
Hand tighten the original lockring of the cassette (to avoid occasional looseness of this nut we suggest the usage of a drop of medium blu threadlocker)

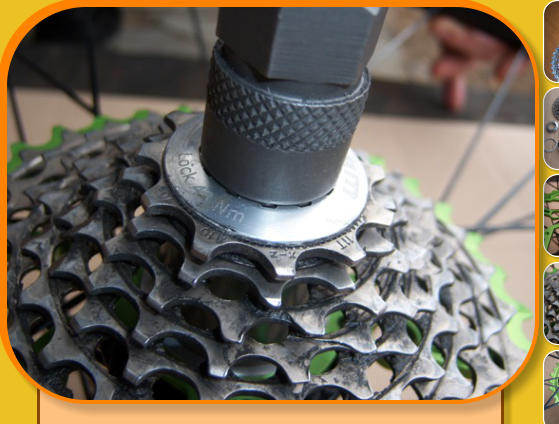

Phase 2. Ari cog assemblyStep 14
lock the original lockring of the cassette with its special wrench following Sram tightening instruction
