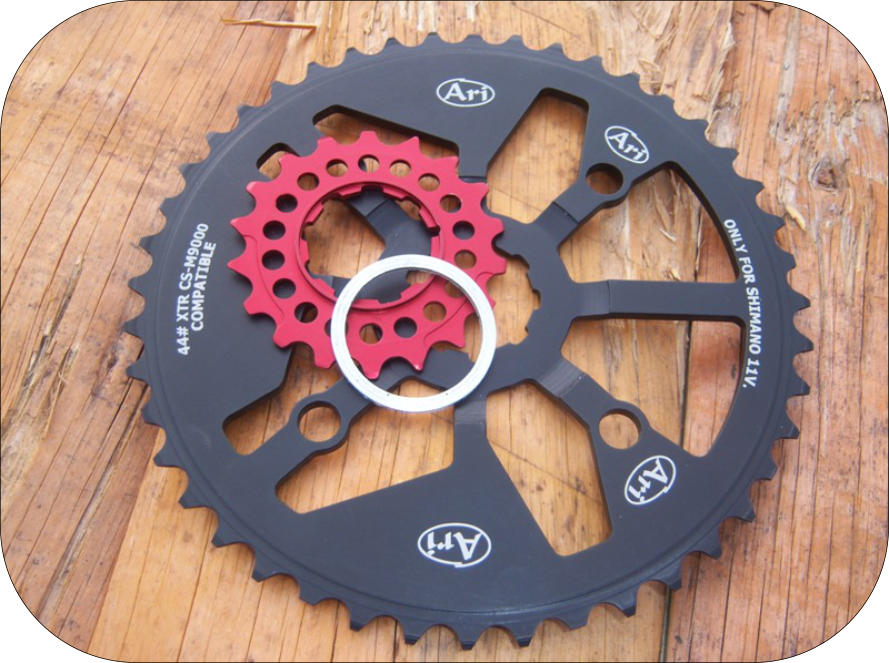

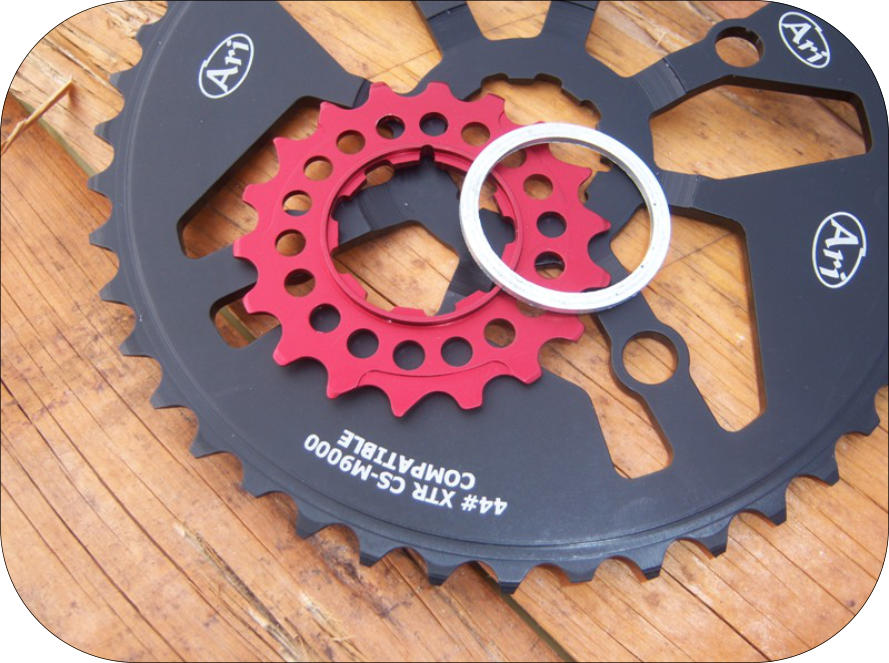

you remove from your Shimano XTR M9000 11speed cassette 11/40 the cogs 17T and 19T
and you replace them with the ARI 18T cog given as spare component and you add, after the original 40T cog,
the ARI spare cog choosen, without any additional modification on your bike

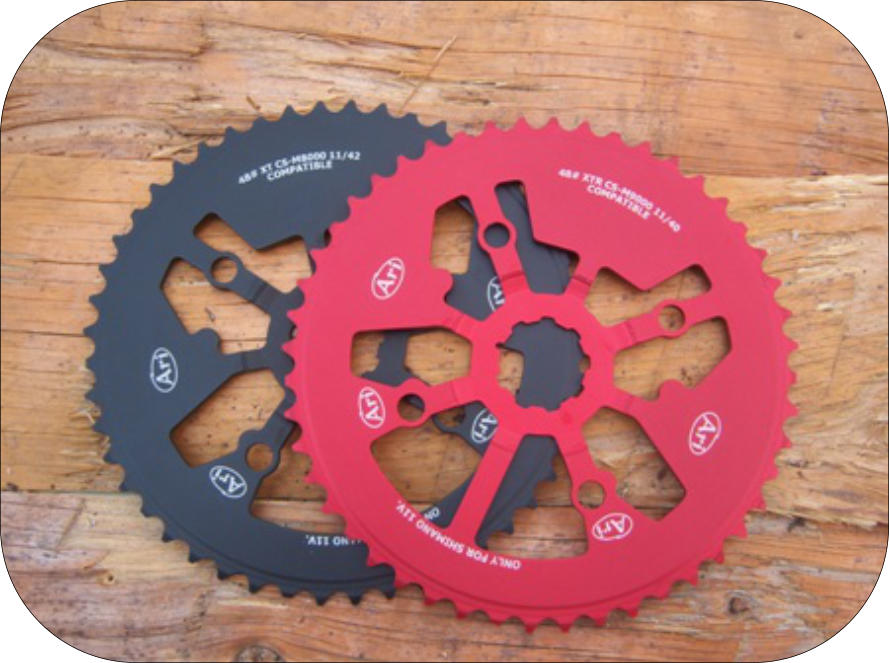

teeth available are: 44T 45T 46T and 48T
replacement is easy and fast - see video attached
material used is hard anodized ERGAL 7075T6
all range of colors is available in our color chart at link Available colors
weight of 44 teeth cog is 98 grams
weight of 45 teeth cog is 104 grams
weight of 46 teeth cog is 111 grams
weight of 48 teeth cog is 122 grams
40T And 42T ARI cog for shimano
and sram rear cassette
mounting instruction video
Derailleur adjustment photo
Adjustment instructions of rear derailleur with larger cogs
Instructions for the correct adjustment of rear derailleur with larger cogs
In the distance adjustment of the rear derailleur from the teeth of the larger cog you have to take extra care that
the inner cage of the derailleur itself, especially during descent, does not touch the gear tooth.

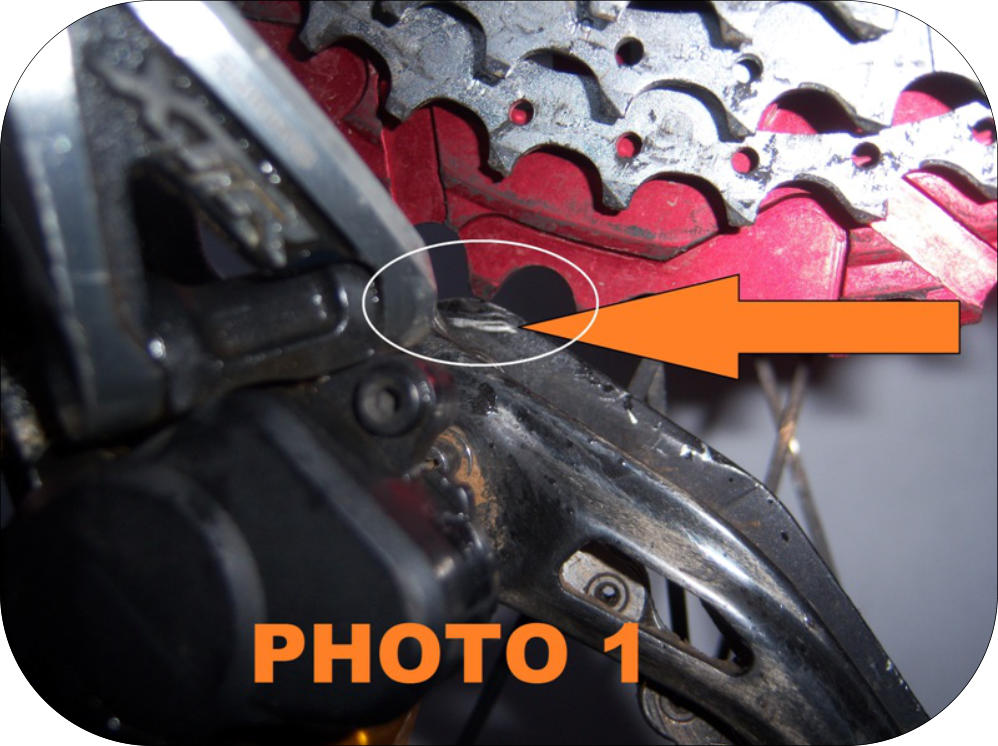

In the photo 1 it is shown the inner side of the cage marked by the tooth of the cog because the adjustment WAS
NOT CORRECT
In the photo 2 it is highlighted interference between the internal cage of the front derailleur and the end of the
teeth of the cog; also in this case the adjustment WAS NOT CORRECT
N.B. ATTENTION, THE INTERFERENCE OF THE DERAILLEUR CAGE WITH THE TEETH OF THE COG CAN
CAUSE THE BREAKING OF THE TEETH OF THE COG
Suggestions for length regulation of chain with monoring
Suggestions for the correct and efficient regulation of the chain lengh with monoring
To avoid accidental falls of the chain with the use of monoring without guidechain it is necessary that the lenght of the
chain itself is perfect.

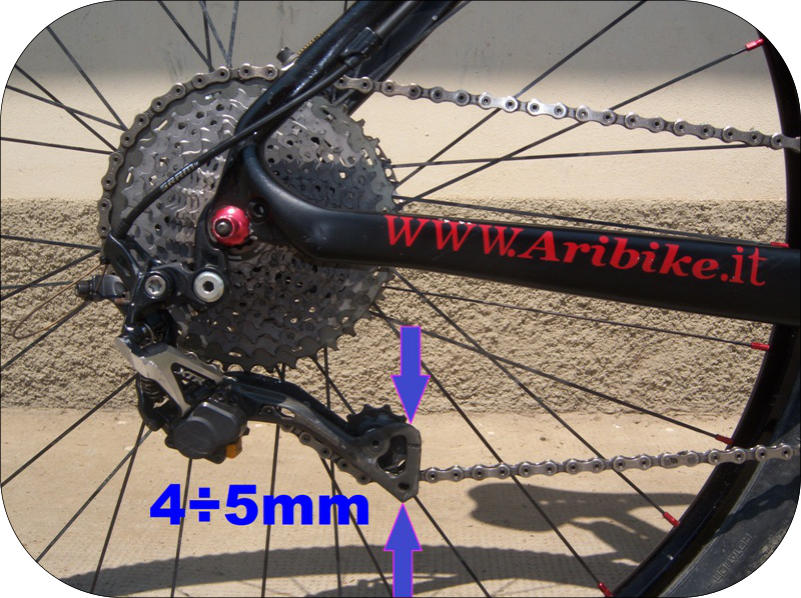

With the chain positioned on the largest rear cog, as is highlighted in the photo, the movement of the front derailleur
should be approximately between 4 and 5 mm
NB

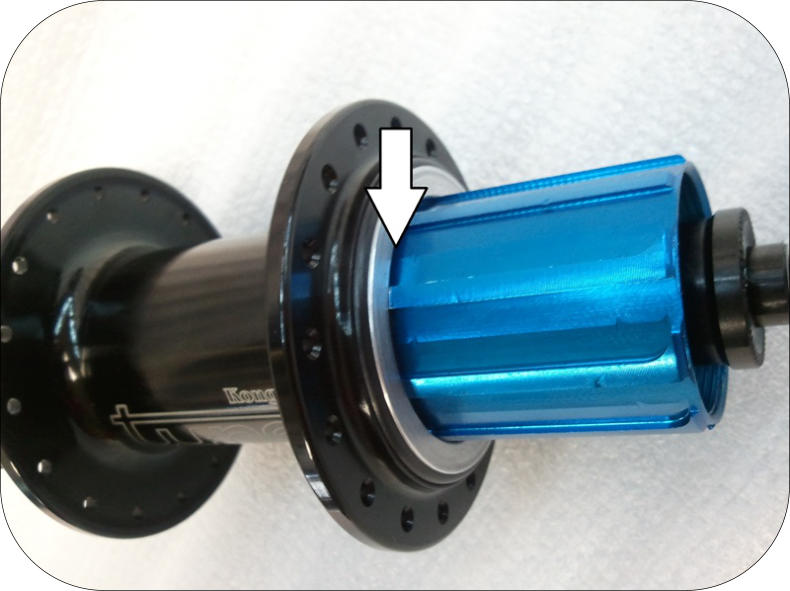

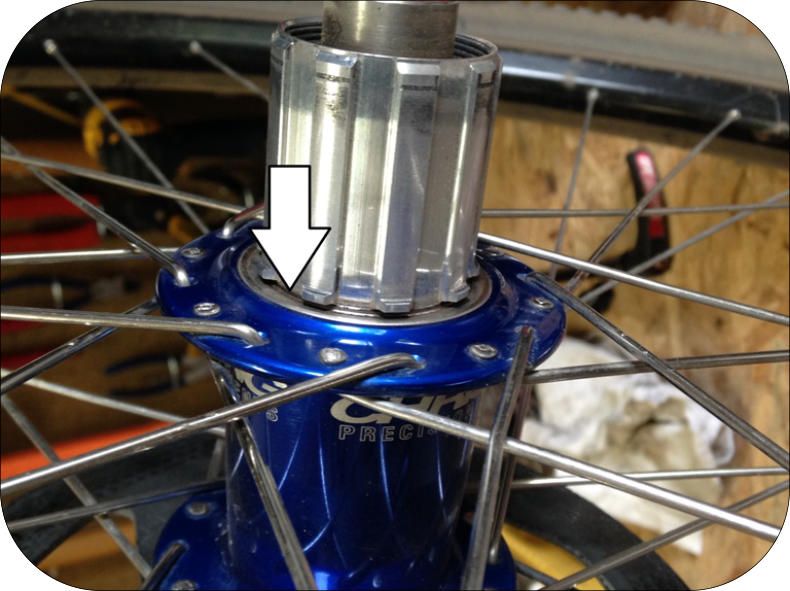

Ari cogs are suitable both for free design hub (hub 1)
than to that with support (hub 2)than to that with support (hub 2)
Hub Compatibily
Hub 1
Hub 2
Here how it shifts the 46 teeth
Ari cog for
Shimano 11 speed cassette
Derailleur adjustment with ARI cog for Shimano cassette
On completion of the mounting of ARI cog for Shimano cassette follow these simple
instructions to adjust the derailleur
1) Place down one of the teeth of ARI cog perpendicular to the ground (do not choose a
milled tooth)
2) Place upward one of the teeth of the upper pulley of the derailleur always
perpendicular to the ground

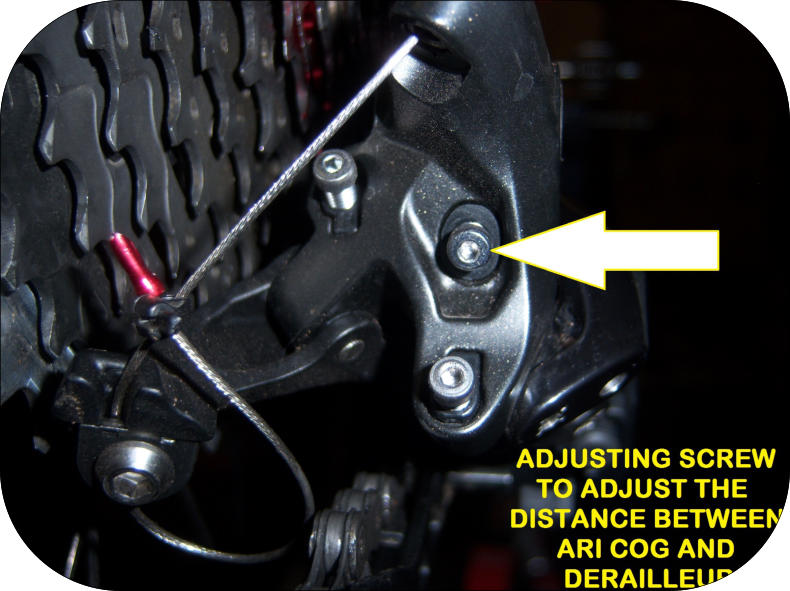

3) By turning the adjusting screw of the derailleur (photo 1) adjust the distance

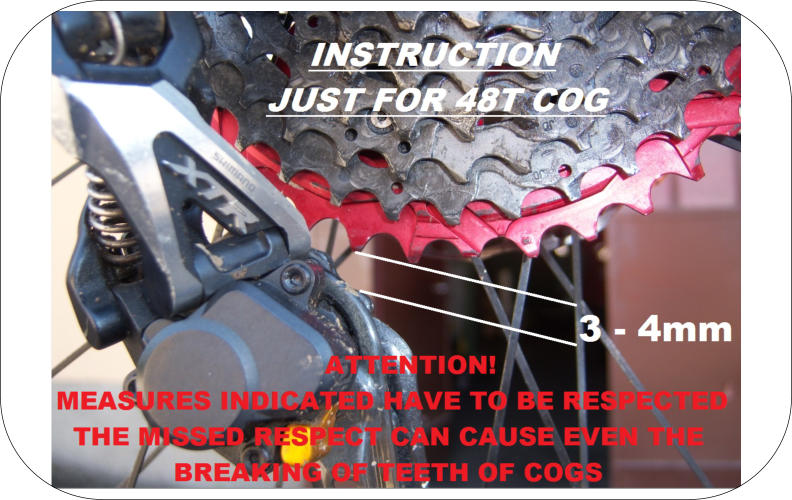

between the teeth at an height between 6 and 7mm for 44t, 45t and 46t cogs and
between 3 and 4mm for 48t cog (photo 2)

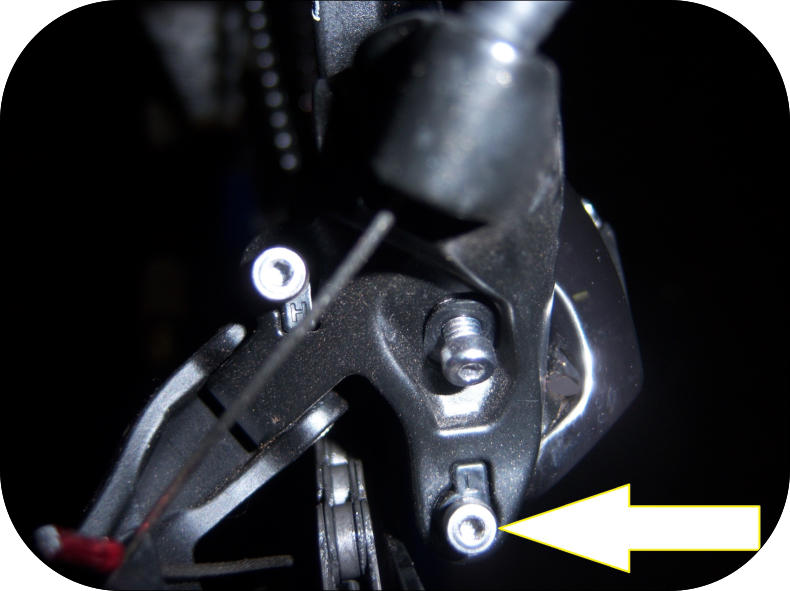

NB Screw L of the rear derailleur has to be generally unscrewed of one-half turn, this
allow the chain to shift up efficiently on the cog added (photo 3)
photo 1
photo 2
photo 3
ARI spare/upgrade cog for Shimano XTR M9000
11/40 11speed cassette
cod. 304 € 110,00
